1.Definition: SlimSAS is one of the SAS internal connections, a high-speed data transfer interface protocol designed to meet the high-speed and high-density needs of current and future computer storage. It has higher bandwidth and smaller size, and is a single-channel ultra-high-speed connectivity solution.
2.Development: SlimSAS is developed from the SAS interface protocol, and its interface protocol also supports transmission rates up to 24 Gbps.
3.Features:
High-speed transmission: Supports higher transmission rates to meet the high-speed needs of current and future computer storage.
High density: It adopts a smaller size and can support more physical interfaces in the same space to meet the needs of high-density storage.
Flexibility: Supports multi-mode connectivity, as well as direct connection to PCIe storage controllers.
Application: The SlimSAS interface protocol is widely used to connect large-capacity data devices such as cloud computing, servers, high-speed networks, disk arrays, switches, large-capacity storage systems, hard disk control cards, etc. to achieve high-speed data transmission.

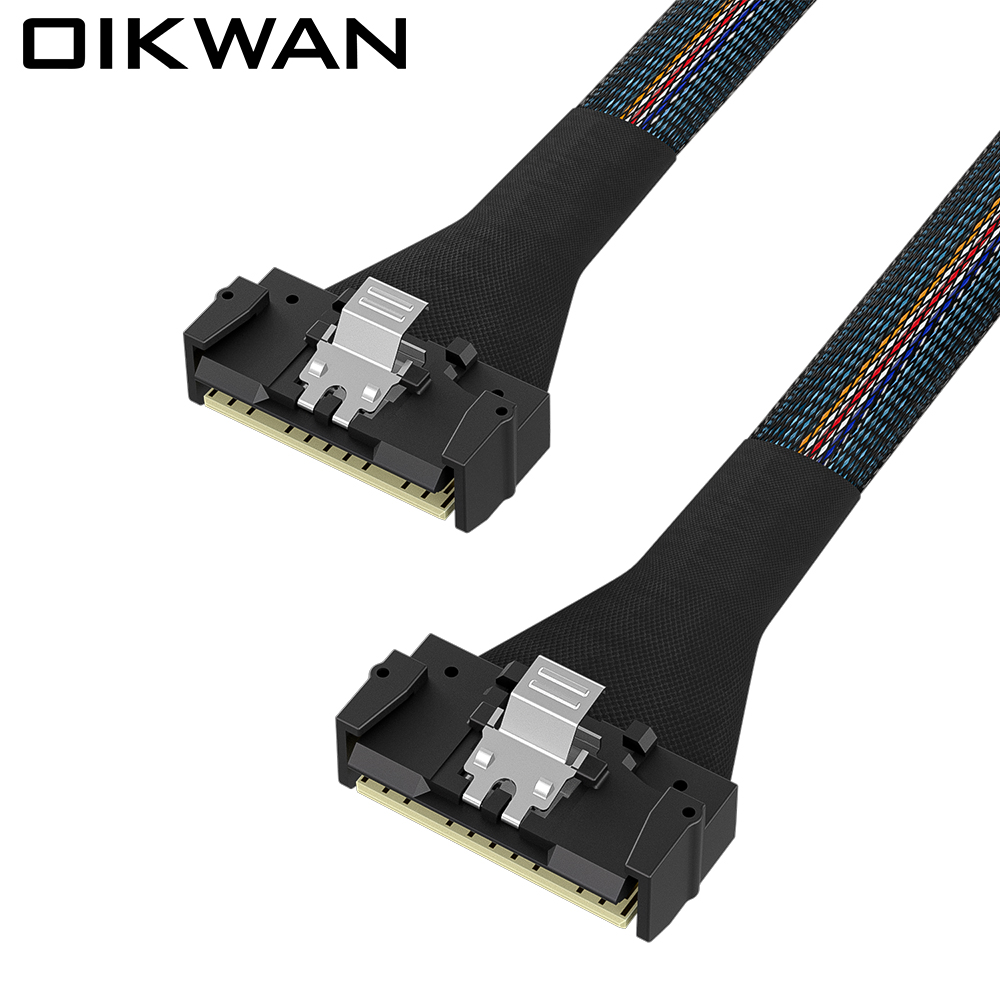

LP SlimSAS
1.Definition: LP SlimSAS is a storage interface based on SAS technology. While inheriting the high reliability and high performance features of the traditional SAS interface, it further improves speed, reduces latency, and adopts a smaller physical size. , adapted to the strict requirements of modern data centers for space and energy efficiency.
2.Standard: SFF-8654 8i is an important standard for the LP SlimSAS interface. It defines the physical and electrical specifications of the LP SlimSAS interface so that different devices can be compatible with each other. The SFF-8654 8i standard supports multiple data transfer rates.
3.Interface:
SAS interface: As the basic interface of LP SlimSAS, the SAS interface supports the connection of 2.5-inch and 3.5-inch hard drives and SSD (solid-state drives). It not only ensures the integrity of data during high-speed transmission, but also has a hot-swappable function, allowing the replacement of failed hard drives while the device is running, greatly improving the reliability of the system.
SAS expander interface: Mainly used to connect multiple SAS devices to a SAS channel to achieve centralized management of storage devices and efficient data transmission.
SAS controller interface: As an interface connecting the host system to multiple SAS devices, the SAS controller interface allows the host system to communicate with multiple SAS devices to achieve centralized management and efficient access to data.
4.Advantages:
High speed: Supports higher transmission rates, allowing data to be read and written faster during transmission.
Low latency: A more efficient transmission mechanism is adopted to reduce the delay time of data transmission.
High reliability: Inheriting the high reliability characteristics of the SAS interface, ensuring data integrity.
Hot-swappable: Supports hot-swappable function, which can replace failed hard drives without interrupting system operation.
Centralized management: By using the centralized management function, centralized management of storage devices and efficient data transmission can be achieved.
5.Application scenarios:
Data center: LP SlimSAS can improve the performance and reliability of storage devices, reduce costs, and improve the storage performance and reliability of data centers.
Server: Provides centralized management and efficient data transmission functions, improving server performance and reliability. Enterprise-level storage: Can meet the needs of high reliability, high performance and centralized management.
